PRODUCTS Ribbon and Reed Olive Knuckle Hinge Standard and Heavy Weight
1 / 3

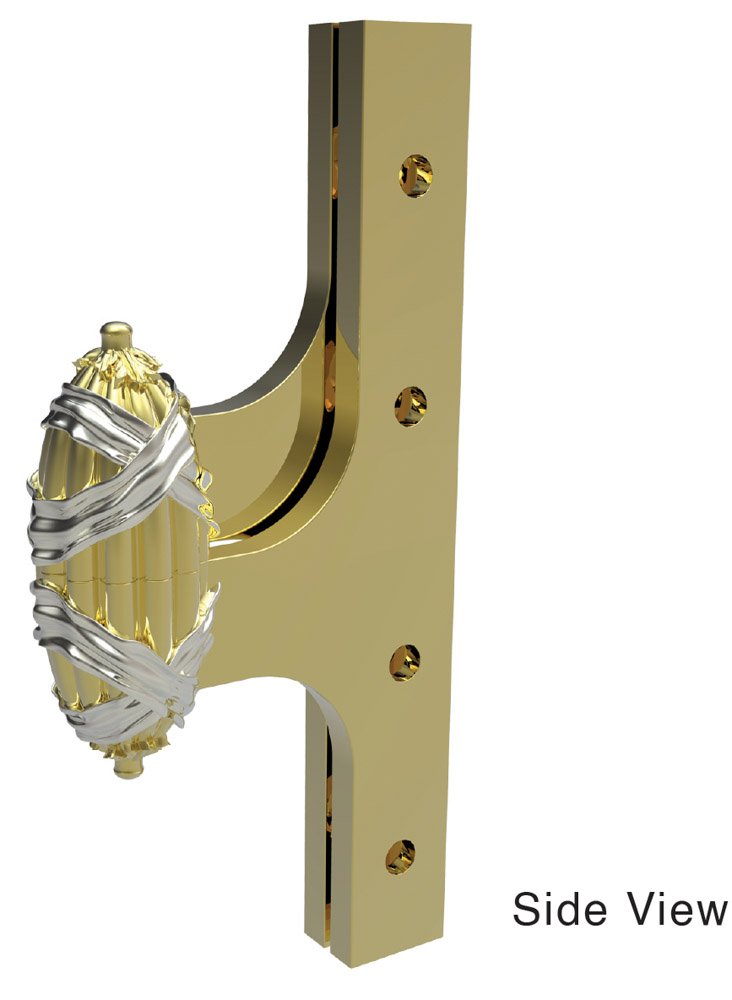

R&R Olive Knuckle Hinge, Side view.jpg Image 1 of 3
R&R Olive Knuckle Hinge, Side view.jpg
ribbon-and-reed-olive-knuckle-hinge-standard-and-heavy-weight-13.jpg Image 2 of 3

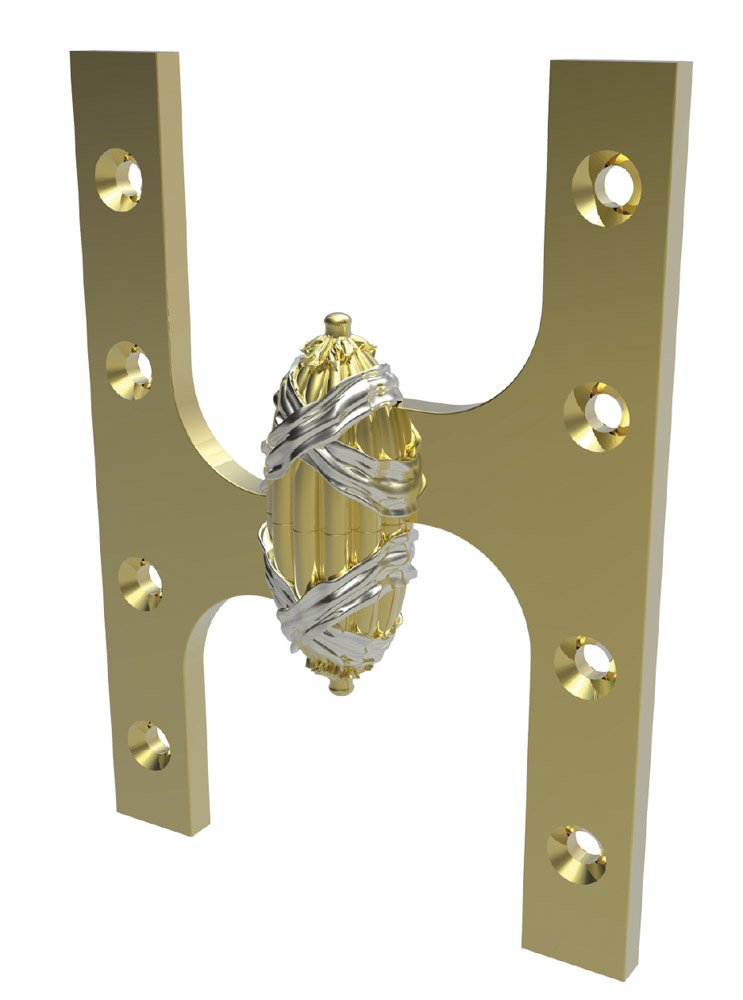

R&R Olive Knuckle Hinge, front view.jpg Image 3 of 3
R&R Olive Knuckle Hinge, front view.jpg

Ribbon and Reed Olive Knuckle Hinge Standard and Heavy Weight

SGD 0.00

Hightly Detailed Ribbon & Reed Design
Lost Wax Cast Knuckle, Solid Forged Brass
Hand Chased and Hand Polished
Concealed Stainless Steel Bearing
Standard and Heavy Weight
Available in Solid or Mixed Finishes
All Ribbon & Reed Olive Knuckle Hinges are Handed. Specify Hand of Hinge When Ordering

Ribbon & Reed Olive Knuckle Hinge Sizes:
L 5.0" W 3.250" Gauge 0.169" Screw 12 x 1.25"
L 6.0" W 3.875" Gauge 0.203" Screw 12 x 1.25"
L 6.0" W 4.000" Gauge 0.255" Screw 12 x 1.25"
L 6.0" W 4.500" Gauge 0.255" Screw 12 x 1.25"
L 6.0" W 5.000" Gauge 0.255" Screw 12 x 1.25"

Item Numbers

17-5032 - 5.0" X 3.2" Ribbon & Reed Olive Knuckle Hinge
17-6038 - 6.0" X 3.8" Ribbon & Reed Olive Knuckle Hinge
17-6040 - 6.0" X 4.0" Ribbon & Reed Olive Knuckle Hinge
17-6045 - 6.0" X 4.5" Ribbon & Reed Olive Knuckle Hinge
17-6050 - 6.0" X 5.0" Ribbon & Reed Olive Knuckle Hinge

Category: Specialty Hinges
Suited: Yes
Collection: Ribbon & Reed

Quantity:
Add To Cart

Hightly Detailed Ribbon & Reed Design
Lost Wax Cast Knuckle, Solid Forged Brass
Hand Chased and Hand Polished
Concealed Stainless Steel Bearing
Standard and Heavy Weight
Available in Solid or Mixed Finishes
All Ribbon & Reed Olive Knuckle Hinges are Handed. Specify Hand of Hinge When Ordering

Ribbon & Reed Olive Knuckle Hinge Sizes:
L 5.0" W 3.250" Gauge 0.169" Screw 12 x 1.25"
L 6.0" W 3.875" Gauge 0.203" Screw 12 x 1.25"
L 6.0" W 4.000" Gauge 0.255" Screw 12 x 1.25"
L 6.0" W 4.500" Gauge 0.255" Screw 12 x 1.25"
L 6.0" W 5.000" Gauge 0.255" Screw 12 x 1.25"

Item Numbers

17-5032 - 5.0" X 3.2" Ribbon & Reed Olive Knuckle Hinge
17-6038 - 6.0" X 3.8" Ribbon & Reed Olive Knuckle Hinge
17-6040 - 6.0" X 4.0" Ribbon & Reed Olive Knuckle Hinge
17-6045 - 6.0" X 4.5" Ribbon & Reed Olive Knuckle Hinge
17-6050 - 6.0" X 5.0" Ribbon & Reed Olive Knuckle Hinge

Category: Specialty Hinges
Suited: Yes
Collection: Ribbon & Reed

Hightly Detailed Ribbon & Reed Design
Lost Wax Cast Knuckle, Solid Forged Brass
Hand Chased and Hand Polished
Concealed Stainless Steel Bearing
Standard and Heavy Weight
Available in Solid or Mixed Finishes
All Ribbon & Reed Olive Knuckle Hinges are Handed. Specify Hand of Hinge When Ordering

Ribbon & Reed Olive Knuckle Hinge Sizes:
L 5.0" W 3.250" Gauge 0.169" Screw 12 x 1.25"
L 6.0" W 3.875" Gauge 0.203" Screw 12 x 1.25"
L 6.0" W 4.000" Gauge 0.255" Screw 12 x 1.25"
L 6.0" W 4.500" Gauge 0.255" Screw 12 x 1.25"
L 6.0" W 5.000" Gauge 0.255" Screw 12 x 1.25"

Item Numbers

17-5032 - 5.0" X 3.2" Ribbon & Reed Olive Knuckle Hinge
17-6038 - 6.0" X 3.8" Ribbon & Reed Olive Knuckle Hinge
17-6040 - 6.0" X 4.0" Ribbon & Reed Olive Knuckle Hinge
17-6045 - 6.0" X 4.5" Ribbon & Reed Olive Knuckle Hinge
17-6050 - 6.0" X 5.0" Ribbon & Reed Olive Knuckle Hinge

Category: Specialty Hinges
Suited: Yes
Collection: Ribbon & Reed

Description
Olive Knuckles are priced and sold as eaches.
Concealed Stainless Steel Bearing.
Forged Brass Arm.
Lost Wax Cast Knuckle.
Equipped with one concealed, precision machined, anti-friction bearing assembly per hinge.
Ball Bearings are machined from 300 series Stainless Steel and employ Stainless Steel balls.
All pins are precision machined from 300 series Stainless Steel.
All olive knuckle hinges are handed. Be sure to specify hand of hinge when ordering.
Features
Hinge Body:
Hinge leaf is manufactured of solid forged brass with a lost wax cast knuckle.
Ball Bearings:
Each hinge is equipped with one precision machined anti-friction ball bearing assembly. The two races are machined from 300 series Stainless Steel. The balls are Stainless Steel as well. The bearing shell is machined from brass of the same alloy as the hinge body to ensure an accurate color match. The construction results in an extremely durable, long life ball bearing which is able to withstand years of hard use and corrosive environments. This bearing greatly increases both the lateral and vertical load bearing capability of the hinge and therefore increases hinge life. This bearing is fully concealed.
Finish:
Hinges are individually hand chased and hand polished assuring an even finish with no unpolished areas. Von Morris Ribbon & Reed Olive Knuckle hinges are available in over 30 standard finishes. Custom and mixed finishes are available. Please refer to the Price List.
Pins:
Pins are machined from 300 series Stainless Steel for high durability and resistance to rust. They are permanently installed in one half of the hinge. The exposed end is rounded to facilitate re-assembly.
Fasteners:
All hinges are provided with type “A” tapping screws. These are solid brass, flat head, counter sunk, undercut phillips head screws. Screws are bagged eight per bag.
Number of Hinges:
For doors up to 89 inches, use three hinges. For each additional 30 inches or fraction thereof, use one additional hinge.
Packing:
Two hinges per box with screws. Each hinge is poly bagged to prevent scratching.
Handing & Specifying :
These hinges are handed. Please be sure to specify hand of hinges when ordering. Olive Knuckle Hinges are priced and sold as eaches.
Downloads
Ribbon & Reed Olive Knuckle Hinge Teasrsheet
You Might Also Like

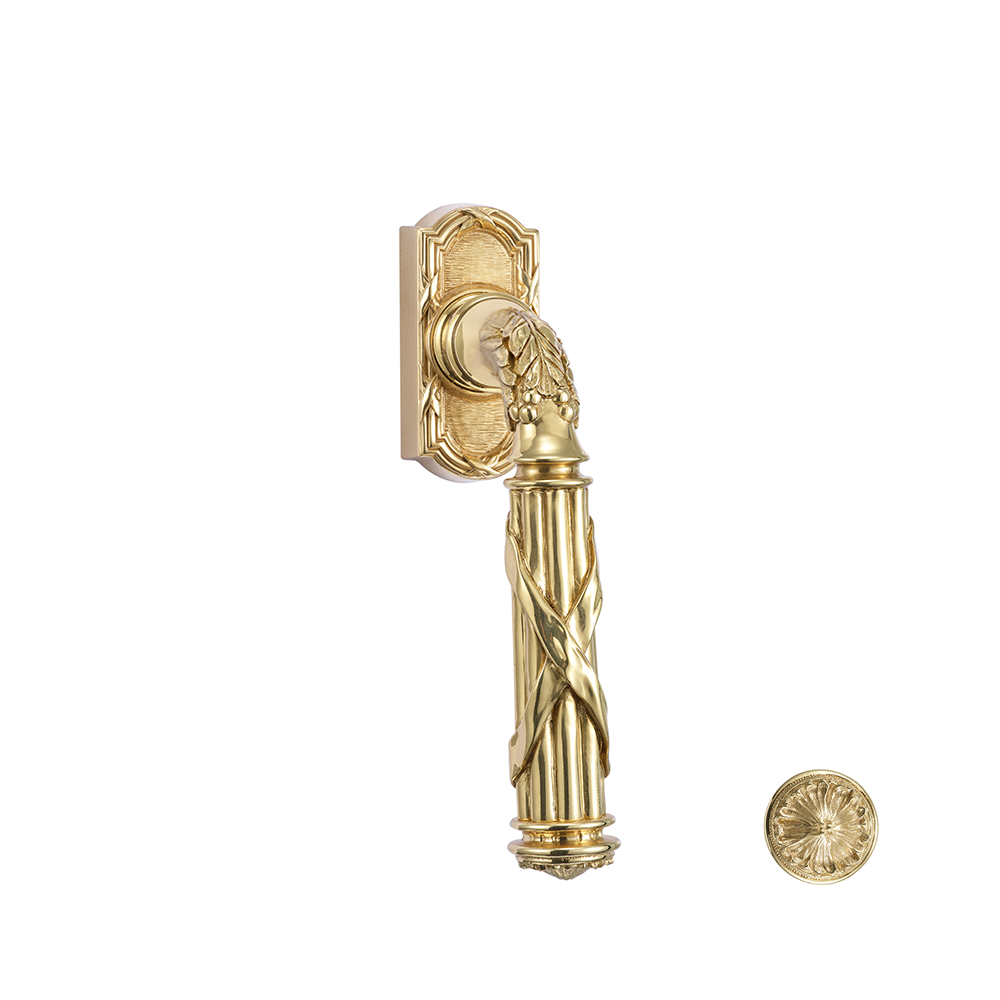

Ribbon & Reed Tilt Turn trim with Ribbon & Reed Lever
